Gantry

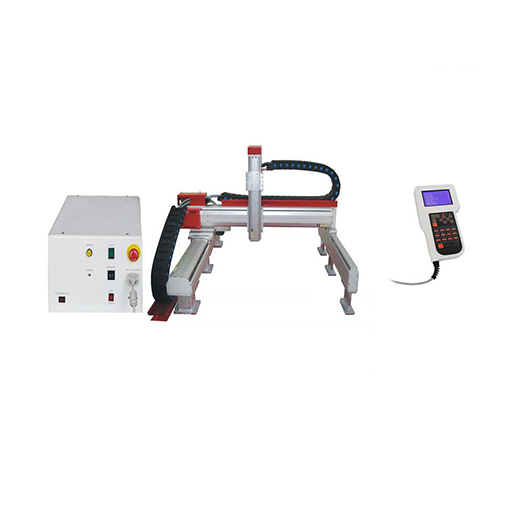

Sdr9000s series gantry universal machine adopts auxiliary shaft design to ensure the stability of large stroke. The rugged aluminum structure has shockproof function, which is suitable for dispensing operation of industrial conveyor belt device.
- Overview
- Specifications
1. Servo motor drive and ball screw design.
2. Auxiliary design is adopted to ensure the stability of large stroke motion.
3. Suitable for multi-purpose operation.
4. It can be used with conveyor belt assembly line.
型號 | SDR9300S | SFR9400S | SDR9500S | SDR9600S | SDR9700S | SDR9800S |
工作范圍: X/Y/Z mm | 300/300/100 | 400/400/100 | 500/500/100 | 600/600/100 | 700/700/100 | 800/800/100 |
最大負載Z軸 | 8.0kg | |||||
移動速度 X&Y/Z (mm/sec) | 0.1~500/320 | |||||
重復精度 | +/- 0.01mm / axis | |||||
解析能力 | 0.01mm/axis | |||||
程序記錄容量 | 至少100組，每組4000點 | |||||
數據儲存方式 | CF 卡 | |||||
顯示方式 | LCD | |||||
操作模式 | PTP (打點 & CP (持續路徑) | |||||
運動補間功能 | 3 軸（立體空間任意路徑皆可） | |||||
編輯模式 | 教導盒 | |||||
I/O 訊號端口 | 8 進 / 8 出 | |||||
外部控制接口 | RS232 | |||||
馬達系統 | 伺服馬達 | |||||
傳動模式 | 精密滾珠絲桿 | |||||
入力電源 | 全電壓：AC 90~260V 320W | |||||
工作環境溫度 | 0~40°C | |||||
工作環境濕度 | 20~90%無凝露 | |||||
