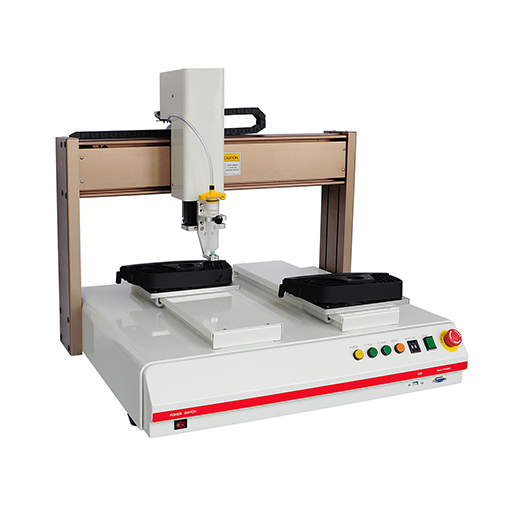

Sdr5331n double Y-axis dispensing machine
InSo double Y-axis automatic dispensing machine is designed with double worktable, which can cycle left and right, save material taking and discharging time, and improve production efficiency. It has the functions of continuous interpolation of irregular curves such as line drawing, surface, arc and circle, and four axis linkage.
- Overview
- Specifications
1. Double Y-axis structure design, can be left and right circulation operation.
2. Save the time of discharging and improve the production efficiency.
規格型號 | SDR5331N | SDR5441N |
加工范圍X/Y/Z | 500×300×300×100 | 500×400×400×100 |
負重XY/Z | 11KG/5KG | |
移動速度XY/Z | 800/350mms | |
重復精度 | ±0.02mm軸 | |
資料記錄能力 | 至少100組、每組4000點 | |
資料存儲方式 | CF卡 | |
資料運算速度 | 32bit | |
顯示方式 | LED | |
馬達系統 | 日本微步進電機 | |
傳動模式 | X/Y軸同步帶 Z軸絲桿 | |
直線圓弧運動模式 | 3軸（立體空間任意路徑皆可） | |
教導模式 | 教導盒 | |
I/O訊號 | 8進/8出 | |
外部控制界面 | RS232 | |
輸入電源 | 全電壓 AC100-230V,300W | |
工作環境溫度 | 10-40° | |
工作環境濕度 | 20-90%無凝露 | |
機臺尺寸 | 585×610×610 | 685×700×610 |
機臺重量 | 41KG | 52KG |
