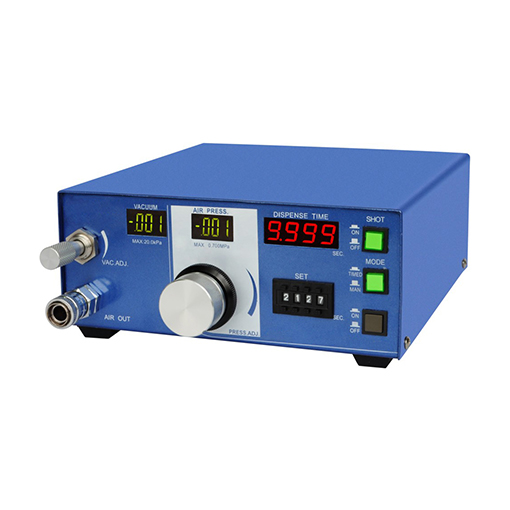

SYD350
Syd350 is a new type of micro-computer numerical control precision dispensing machine developed by our company. It is suitable for all kinds of fluids. It has manual (continuous dispensing) and automatic (segmented dispensing) functions. It has teaching function, which is convenient for setting initial parameters. Vacuum modulation mechanism is used to prevent dripping. It has input and output signal functions. Equipped with pneumatic pulse stabilization circuit, equipped with various advanced functions, to achieve excellent dispensing accuracy. The space occupied by 65% of the setting area is miniaturized.
- Overview
- Specifications
Suitable for all kinds of fluids;
It has the functions of manual (continuous discharge) and automatic (segmented discharge); it has the function of teaching,
It is convenient to set the initial parameters;
The mechanism of vacuum modulation is used to prevent dripping;
With input and output signal function: output - no contact or contact;
Output - contact (standard equipment dispensing completion signal)
Ten year functional guarantee
型號 | SYD350 |
控制方式 | 電子／氣動方式 |
空壓控制回路 | 搭載氣動脈沖穩(wěn)定電路 |
吐出壓力設定 | 5.0～700.0kPa |
吐出時間設定 | 0.010～9.999sec.(0.001sec.步) |
吐出時間控制電路 | C-MOS IC控制數(shù)字電路 |
回吸壓力設定 | 0～-20.0kPa |
顯示部 | ＬＥＤ數(shù)碼顯示 |
輸入，輸出信號 | 輸入無接點或者有接點輸出：無接點 |
供給氣壓 | 最大0.8MPa（吐出壓力＋0.1MPa以上） |
電源?9?9消耗電力 | AC100～240V 50/60Hz.17W |
外形尺寸?9?9重量 | W188×D196×H76mm. 3.4kg |
防止滴液用真空調整機構 | 微量真空回吸調節(jié) |
