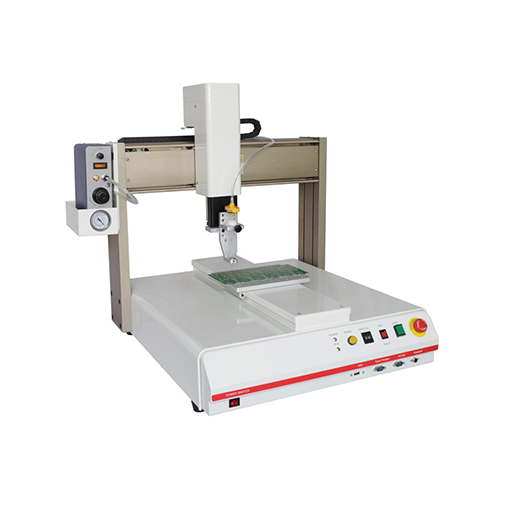

SDR441N
The product combination of inSo dispenser is used to make dispensing operation more stable and cost-effective.
It highly inherits the characteristics of N series such as high rigidity structure.
Table robot with high cost performance for dispensing equipment.
- Overview
- Specifications
N series is simpler than programming and modifying
1. 7 kinds of surface coating dispensing function are added.
2. After coating, it has the function of preventing wire drawing.
3. Add the function of giving up glue.
4. Special I / O connector for independent dispenser is provided.
5. It has a special I / O interface for automatic correction of needle position.
6. Compact structure, can effectively save space, can be arbitrarily installed in different production lines.
7. Can be equipped with a variety of different valve body mounting bracket, suitable for multi valve body dispensing operation at the same time.
8. Multiple needle cylinder dispensing operation is optional.
9. According to the height of the workpiece, the double column can be customized.
規格型號 | SDR221N | SDR331N | SDR441N | SDR551N | SDR651N |
加工范圍X/Y/Z | 200×200×50 | 300×300×100 | 400×400×100 | 500×500×100 | 600×500×100 |
負重XY/Z | 5KG/3KG | 11KG/6KG | |||
移動速度XY/Z | 500/350mms | 800/350mms | |||
重復精度 | ±0.02mm軸 | ||||
資料記錄能力 | 至少100組、每組4000點 | ||||
資料存儲方式 | CF卡 | ||||
資料運算速度 | 32bit | ||||
顯示方式 | LED | ||||
馬達系統 | 日本微步進電機 | ||||
傳動模式 | 同步帶 | X/Y軸同步帶 Z軸絲桿 | |||
直線圓弧運動模式 | 3軸（立體空間任意路徑皆可） | ||||
教導模式 | 教導盒 | ||||
I/O訊號 | 8進/8出 | ||||
外部控制界面 | RS232 | ||||
輸入電源 | 全電壓 AC100-230V,300W | ||||
工作環境溫度 | 10-40° | ||||
工作環境濕度 | 20-90%無凝露 | ||||
機臺尺寸 | 385×380×500 | 485×505×610 | 585×610×610 | 685×700×610 | 785×700×610 |
機臺重量 | 23kg | 32kg | 41kg | 52kg | 56kg |
