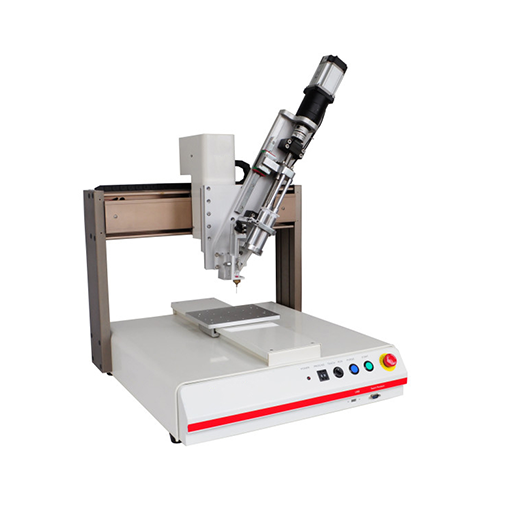

SDR331NW
The volume metering technology is used to push the glue out of the container at a uniform speed. The pressure is stable and the speed is uniform when pushing the glue. The hardware adopts the pushing mode of servo dispensing + reducer and TB precision screw rod, which has high glue output accuracy and repetition accuracy of ± 0.02. It is suitable for 50ml double liquid structural adhesives such as 1:1, 2:1, 10:1, 400ml 1:1, 2:1.
- Overview
- Specifications
Special dispensing machine for two component structural adhesive
1. Servo motor + precision ball screw drive, repeat positioning accuracy: ± 0.01mm
2. Desktop robot with high rigidity aluminum profile structure.
3. Compact structure, can effectively save time, can be arbitrarily installed in different production lines.
4. The motion control system has excellent expansibility.
5. Modular structure design, suitable for direct use of two-component collagen packaging.
規格型號 | SDR331SW | SDR441SW |
加工范圍X/Y/Z | 300×300×100 | 400×400×100 |
負重XY/Z | 15KG/8KG | |
移動速度XY/Z | 500/350mms | |
重復精度 | ±0.01mm軸 | |
資料記錄能力 | 至少100組、每組4000點 | |
資料存儲方式 | CF卡 | |
資料運算速度 | 32bit | |
顯示方式 | LED | |
馬達系統 | 松下伺服電機 | |
傳動模式 | 精密滾珠絲桿 | |
直線圓弧運動模式 | 3軸（立體空間任意路徑皆可） | |
教導模式 | 教導盒 | |
I/O訊號 | 8進/8出 | |
外部控制界面 | RS232 | |
輸入電源 | 全電壓 AC100-230V,300W | |
工作環境溫度 | 10-40° | |
工作環境濕度 | 20-90%無凝露 | |
機臺尺寸 | 585×610×610 | 685×700×610 |
機臺重量 | 50KG | 55KG |
