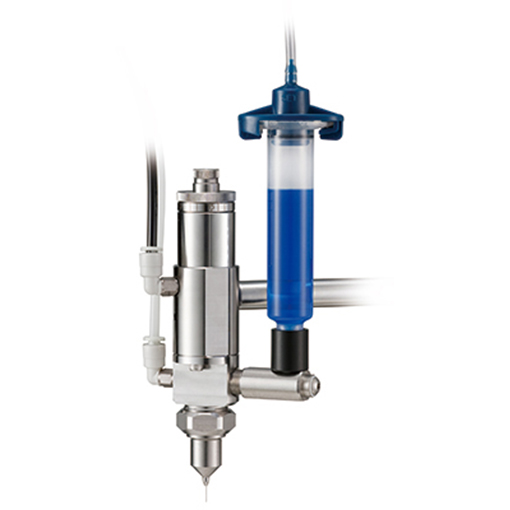

SV97MS
It is suitable for ultra micro spraying as small as 3mm diameter.
The micro spray valve SV97MS uses tiny micro pressure air to achieve a stable uniform spraying of 3 to 20mm diameter.
The use of precision standard syringe with inner diameter of 0.33 to 0.10mm is smaller than that of standard spray valve by more than 60%. And the front end of the needle is clean without liquid residue.
- Overview
- Specifications
Higher adhesion rate
No excess and no splash
Low and medium viscosity liquid agents are applicable
Achieve stable and uniform spraying
Maintenance free style
型號 | SV97MS |
汽缸體 | SUS303 |
流體槽 | SUS303 |
重量 | 308g |
尺寸 | Φ26.9×130mm長 |
供液接頭 | SUS303 |
撞針座 | SUS303 |
噴嘴帽 | SUS303 |
撞針組件 | SUS303 |
V型密封圈 | PTFE、SUS303 |
液劑供給口 | 1/8PNT |
安裝孔 | M6 |
適合針頭直徑 | GP23G(IDΦ0.33mm)∽33G(IDΦ0.1mm) |
驅動氣壓 | 0.4∽0.62Mpa |
霧化氣壓 | 0.2Mpa(標準) |
最大液劑壓力 | 0.7Mpa |
