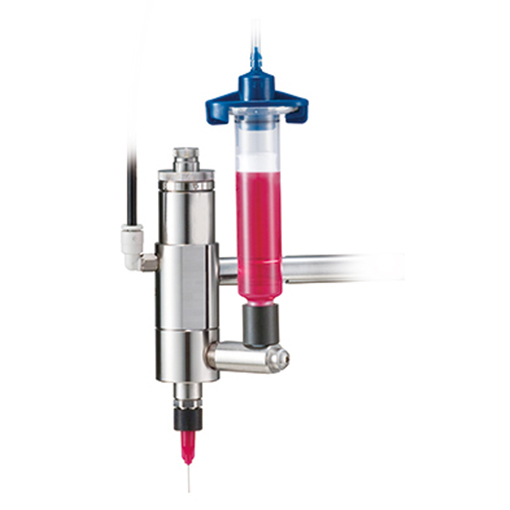

V51
Suitable for UV glue, solvent, lubricating oil, etc. to achieve stable ultra micro dispensing
The needle valve sv51md for ultramicro dispensing can realize stable and high precision micro dispensing.
High precision micro dispensing of epoxy resin, adhesive, solder paste and other liquid agents is carried out in precision assembly by using standard needle with inner diameter of 0.41-0.10 mm.
0512-57921883
Message
- Overview
- Specifications
Stable ultra micro dispensing
There is no bubble in the dispensing
Easy calibration and quick installation
Quick glue breaking without leakage
型號(hào) | SV51 |
汽缸體 | SUS303 |
流體槽 | SUS303 |
重量 | 312g |
尺寸 | Φ26.9×113mm長 |
撞針座 | SUS303 |
撞針組件 | SUS303 |
V型密封圈 | PTFE、SUS303 |
液劑供給口 | 1/8NPT |
安裝孔 | M6 |
驅(qū)動(dòng)氣壓 | 0.4∽0.62Mpa |
最大液劑壓力 | 0.7Mpa |
